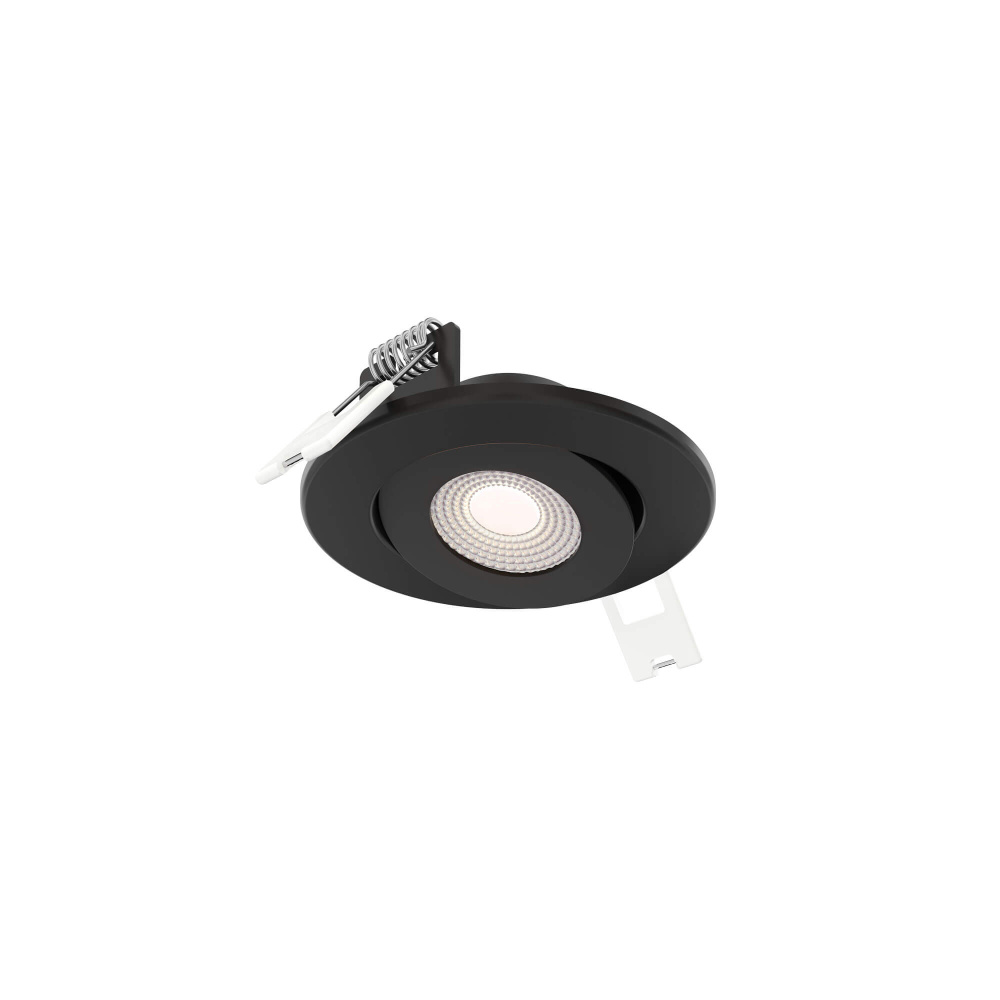

Flat LED Recessed Gimbal (6Y044)

When searching for lighting flexibility, look no further than our 3? flat gimbal LED downlights. With a powerful lumen output and the ability to shine your light on a 360 degree rotation and a 90° tilt angle, this product will meet your every needs.

Downloads

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Product Specification

Item #

6Y044

Dimensions

Height: 1.00"

Width: 3.13"

Length: 3.13"

Additional product details

Internal #

6Y044

Category

Recessed

Subcategory

Regressed

Finish

White

Family

Pivot

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Kelvin

2700, 3000, 3500, 4000, 5000

Material

Aluminum

Ship Carton Height

Ship Carton Length

6.1

Ship Carton Width

4.75

Ship Weight

1.5

Warranty

5 Years Limited

Weight

Air-Tight (ASTM E283--4)

Yes

Beam Angle

38°

Bulb CRI

Country of Origin

China

Delivered Lumens

500

Dimmer Type

Triac

Energy Star

IC Certification

Yes

Indoor

Yes

IP Rating

IP44

JA8

Yes

Lens Material

Acrylic

Location Rating

Wet Rated

Max Wattage

7 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Prop 65

Yes

Safety Rating

ETL Approved

Shipping Master Height

15.75

Shipping Master Length

Shipping Master Quantity

Shipping Master Width

10.25

Title 24

Yes

Wiring

Hardwired

Other Details:

40° beam spread
5-year warranty
90° tilting, 360° rotation
Every fixture includes a junction box with an integrated driver
Suitable for wet locations

Specific Products

Additional options that would change other selections

Call for Price

Qty:

BASE PRICE:

/ / 1

($27.00 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer has 606 items available.
