2in High power regressed recessed round smooth baffle, CCT : 6Y218

No Image
Available

Image may not reflect selected features

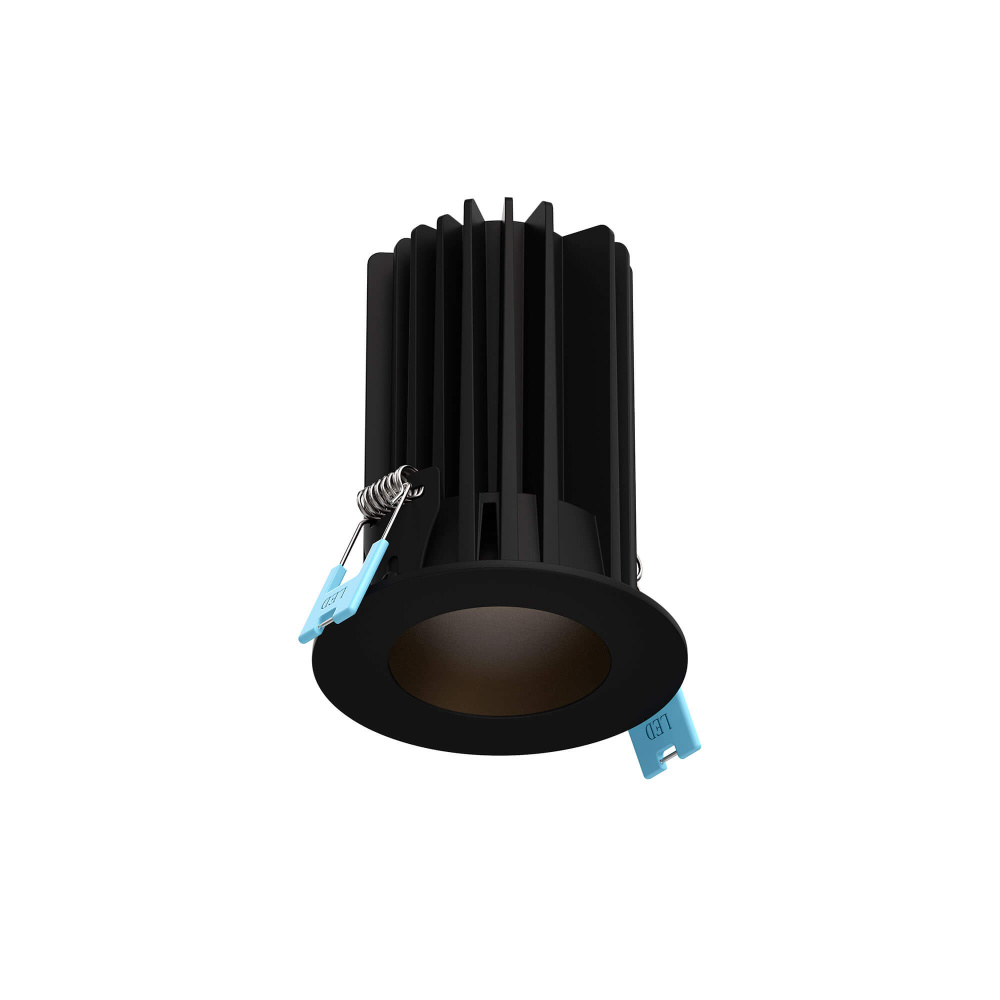

2in High power regressed recessed round smooth baffle, CCT (6Y218)

When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.

Downloads

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Click Here to View Spec Sheet

Product Specification

Item #

6Y218

Dimensions

Height: 3.93"

Width: 3.19"

Length: 3.19"

Additional product details

Internal #

6Y218

Category

Recessed

Subcategory

Directional

Finish

Black

Family

RGR

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Harmonized Codes

9405.10.00.91

Kelvin

2700, 3000, 3500, 4000, 5000

Material

Aluminum

Ship Carton Height

3.1

Ship Carton Length

5.75

Ship Carton Width

5.75

Ship Weight

1.25

Warranty

5 Years Limited

Weight

Air-Tight (ASTM E283--4)

Yes

Beam Angle

40°

Bulb CRI

Country of Origin

China

Delivered Lumens

1080

Dimmer Type

Triac/ELV

Energy Star

IC Certification

Yes

Indoor

Yes

IP Rating

IP44

JA8

Yes

Lens Material

Acrylic

Location Rating

Wet Rated

Max Wattage

15 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Prop 65

Yes

Safety Rating

ETL Approved

Shipping Master Height

18.75

Shipping Master Length

12.25

Shipping Master Quantity

Shipping Master Width

12.25

Title 24

Yes

Wiring

Hardwired

Other Details:

40° beam angle
Air-tight certified as per ASTM E283-04
IC certification (suitable for direct contact with insulation)
Suitable for wet locations
Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
