LED High bay; 200W; 4000K; 277/480V; Black Finish : A94AP

No Image
Available

Image may not reflect selected features

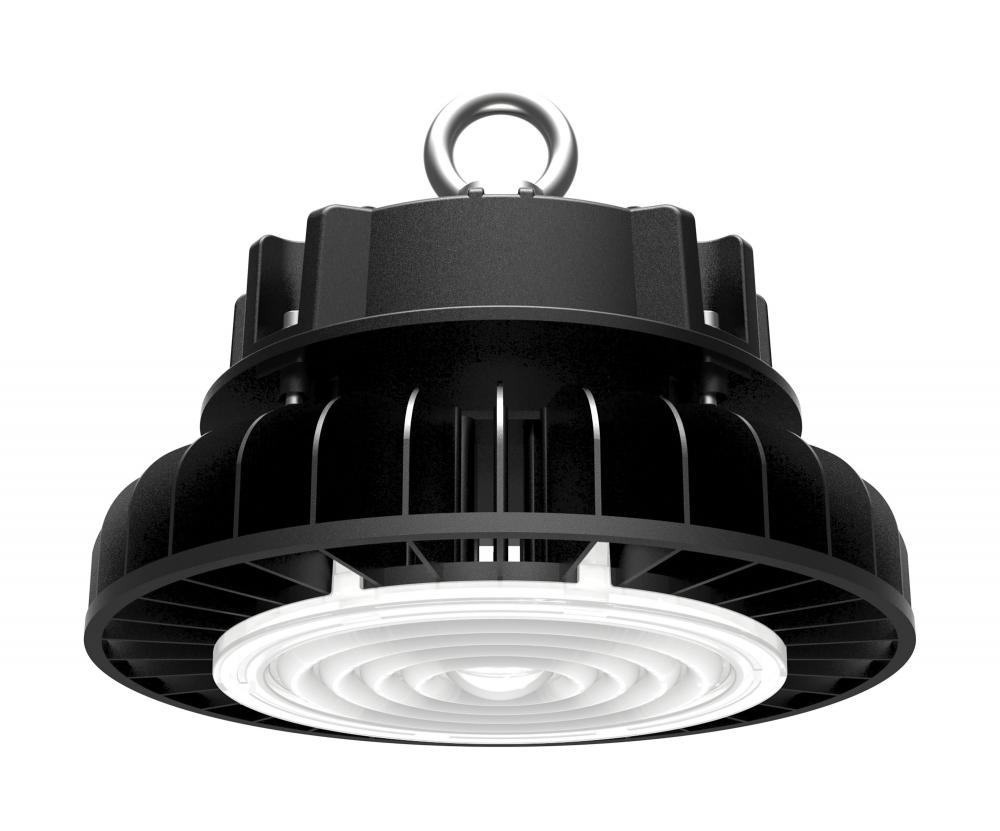

LED High bay; 200W; 4000K; 277/480V; Black Finish (A94AP)

LED High bay; 200W; 4000K; 277/480V; Black Finish

Product Specification

Item #

A94AP

Dimensions

Height: 7.91"

Width: 9.44"

Additional product details

Internal #

A94AP

Category

Hi-Bay

Sub Category

UFO

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Cool White

Diameter

9.44

Dimmable

Yes-Dimmable

Each Height

9.65

Each Length

11.02

Each Width

11.02

Lumens

26000L

Warranty

5 Year Limited - Fixtures

Wire Length

6.56

Amps

0.722-0.417A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

China

CRI

70+

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

Each Cube

0.6782

Each Quantity

Efficacy

130.00 LPW

FCC Compliant

Yes

Finish Family

Black

Fixture shape

Round

Incandescent Equivalent

1500W

IP Rating

IP65

JA8 Compliant

Lens Finish

Transparent

Lens Material

Polycarbonate (PC)

Material

Aluminum Alloy

Mounting Procedure

Ceiling: Loop/Hook/NPT adapter

Operating Temp

-30C (-22F) to +50C (+122F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.92

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Safety Listing

cETLus

SDS class

LED_Lamp

Short Description

LED UFO HIGHBAY - 200W/4000K

Temperature (CCT)

4000K

Title 20 Compliant

Exempt

Title 24 Compliant

Wattage Selectable

Weight Lb.

7.27

Wire Gauge

Wire Quantity

Wire Temp Rating

105C (221F)

Finish

Additional options that would change other selections
