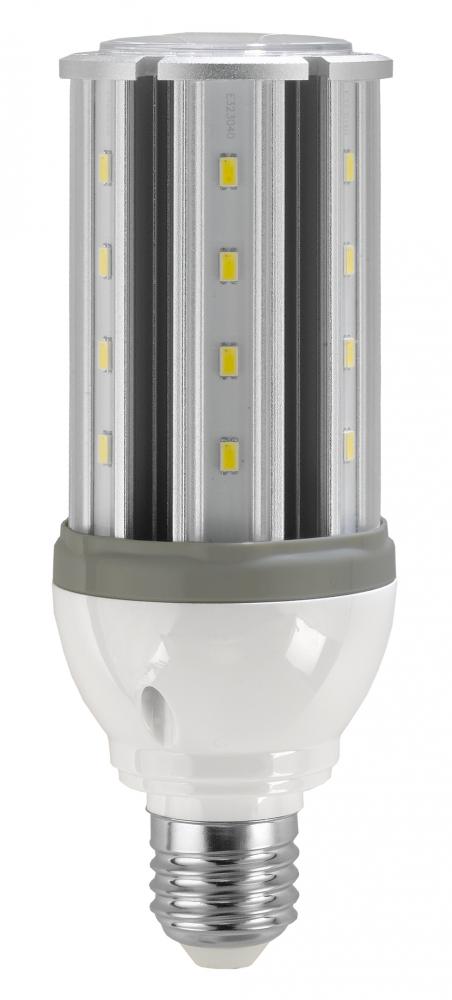

10 Watt LED HID Replacement; 5000K; Medium base; 12-24V DC Only
Image may not reflect selected features
10 Watt LED HID Replacement; 5000K; Medium base; 12-24V DC Only (WQ8NL)
10 Watt LED HID Replacement; 5000K; Medium base; 12-24V DC Only
Product Specification
Item #
WQ8NL
Dimensions
Width: 2.44"
Additional product details
Internal #
WQ8NL
Category
Light Bulbs
Subcategory
LED Bulbs
Style
Traditional
Lumens
1101-1600
Kelvin
4501-5000
Category
LED
Sub-Category
HID Replacements
Volts
12V-24V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
5000K
Bulb Shape
Corncob
Diameter
2.44
EA Length
2.87
Harmonized Codes
8539.52.0091
Length
5.81
Lumens
1200L
Shap Carton Width
2.87
Ship Carton Height
6.46
Ship Weight
0.55
Warranty
5-Years
Weight
0.55
AC/DC
12V-24V DC Only
BAA Compliant
No
Beam Spread
330
Bulb ANSI Base
E26
Bulb Base
Medium
Bulb Finish
Clear
Burning Position
Universal
Carton Cubic Feet
0.0308
Cartons Per Unit
1
CCT Selectable
No
CEC
Non-Compliant - <82 CRI
CEC Terse
Non-Compliant
CEC Web Text
Non-Compliant
Color Temprature
Natural Light
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
120.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
HID Equivalent
30W
Housing Color
White/Grey
Incandescent Equivalent
90W
Installation Notes
Not for use in vapor tight fixtures.
IP Rating
IP64
JA8 Compliant
No
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Location Rating
Damp
Material
Aluminum / Plastic
Minimum Compartment Size
Length: 8.50 in. Width: 6 in. Depth: 6 in.
Operating Frequency
50Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.99
Quantity In Pack
1
R9 Value
15
RoHS Compliant
Yes
SDS class
LED_Lamp
Short Description
10W/LED/HID/5000K/12V-24V E26
Style
Contemporary
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Watts
10W
Finish Family
Additional options that would change other selections
